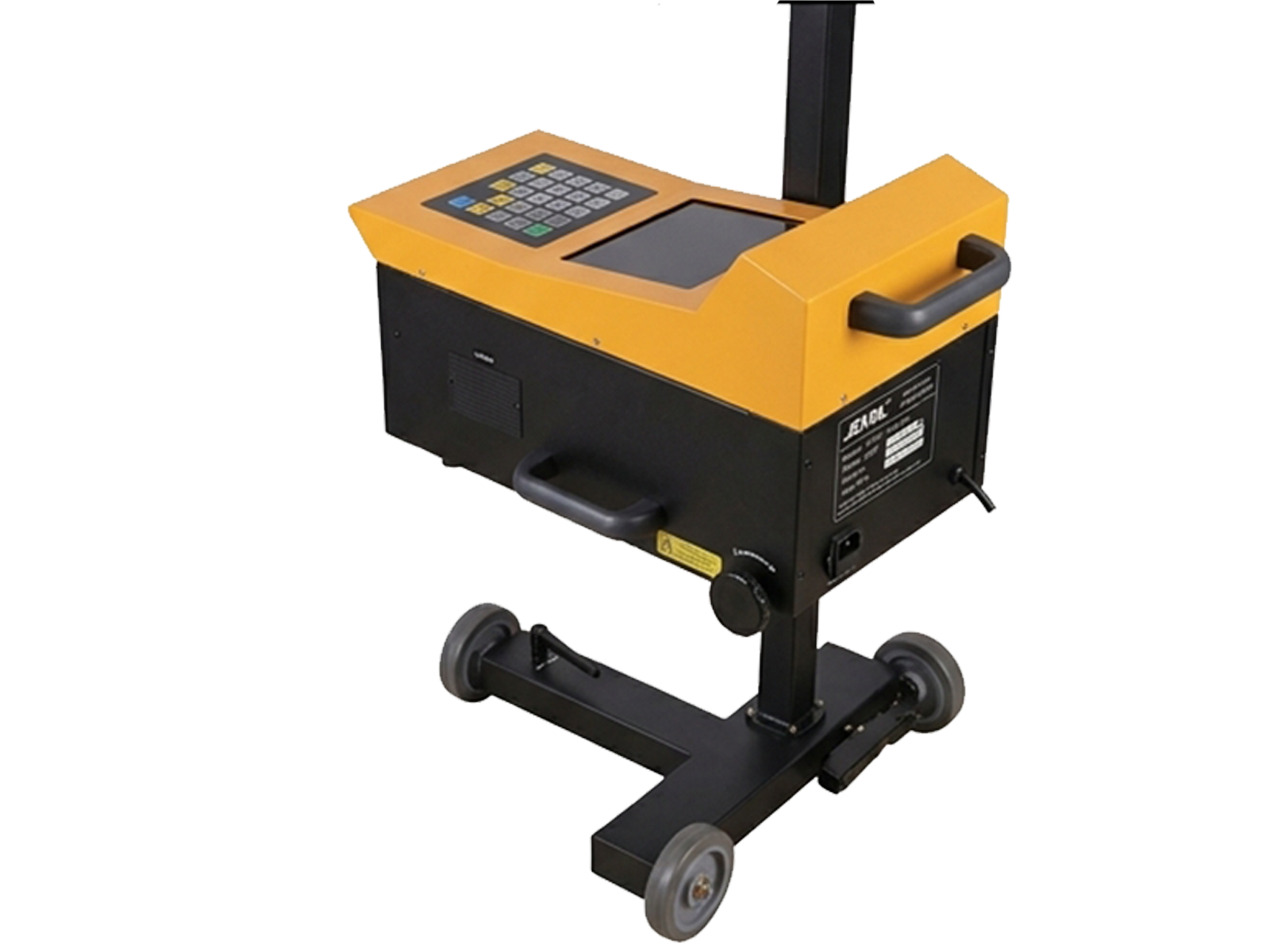

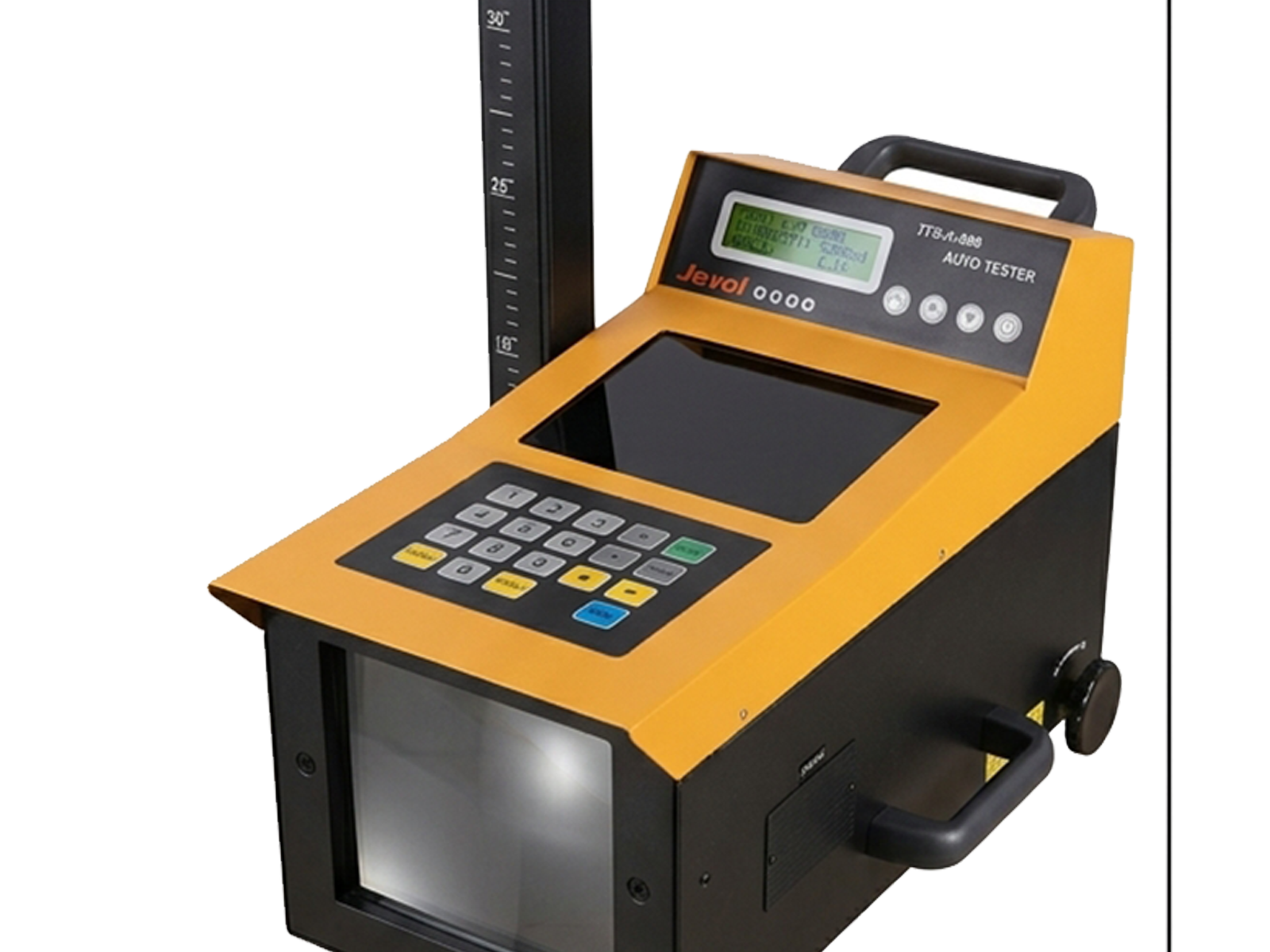

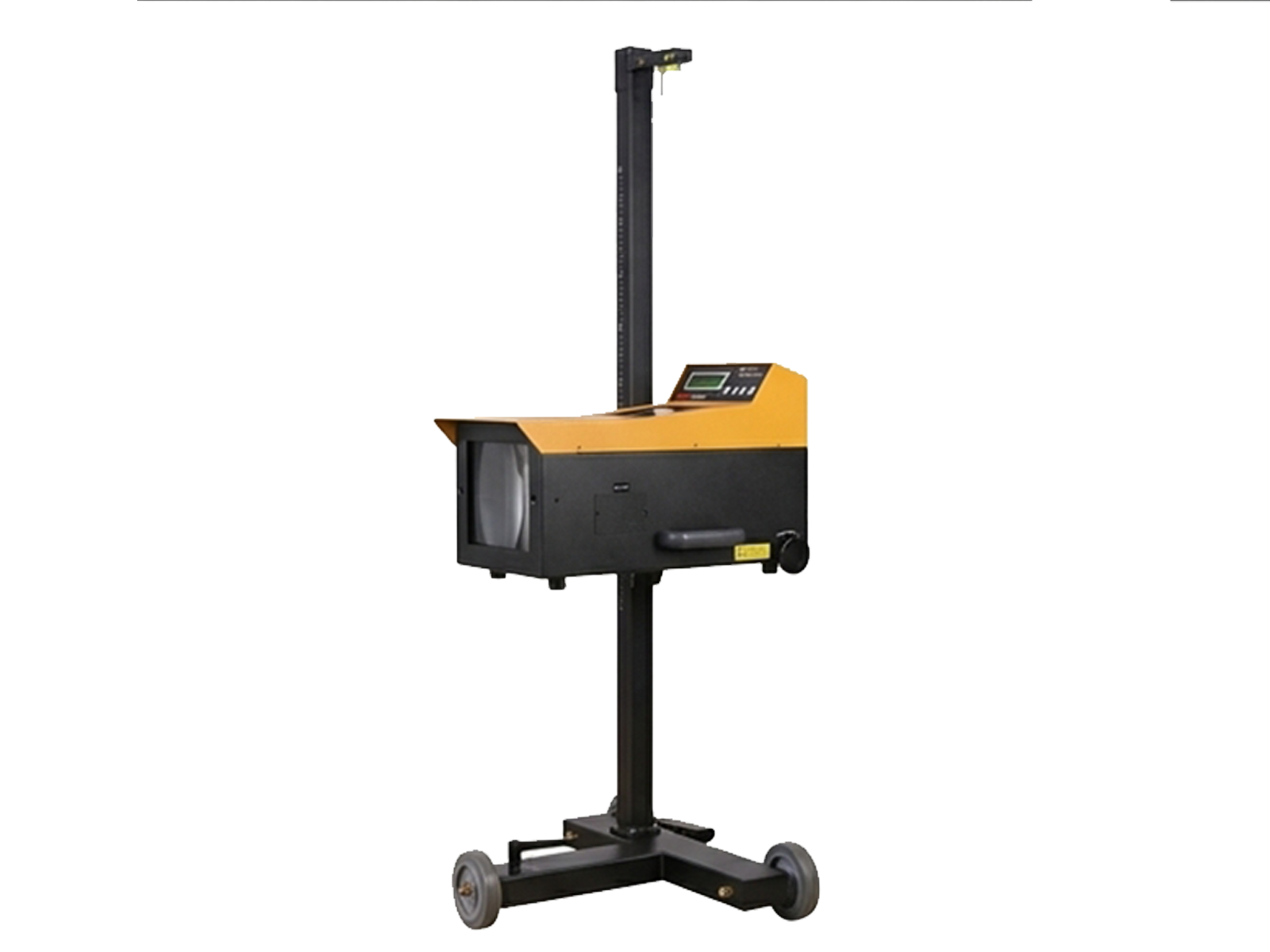

Used to measure the luminous intensity, height and optic axis offset of the headlamp of automobiles.

Features

• LCD interface in English/Chinese, easy for operation;
• Equipped with RS232 serial port and analogue data output interface;
• Equipped with laser device to assist alignment (NHD-8101);
• Low power consumption, able to operate with battery.

Applications

Applicable to garages, vehicle repair & maintenance shops and 3S/4S shops.

Specifications

Model: NHD-8101
Central Height of Headlamp: 50–135 cm
High-beam Luminous Intensity: 0–120,000 cd
Optic Axis Offset: U 1°30'–D 2°30' (U 20 cm/10 m–D 40 cm/10 m)
Optic Axis Offset: L 2°30'–R 2°30' (L 40 cm/10 m–R 40 cm/10 m)
High-beam Luminous Intensity – Indication Error: ±12%
High-beam Optic Axis Offset – Indication Error: ±15'
Low-beam Optic Axis Offset – Indication Error: ±15'
Central Height of Headlamp – Indication Error: ±1 cm
Measuring Distance: 50 cm
Ambient Temperature: 5–40°C
Relative Humidity (RH): <95%
Atmospheric Pressure: 70.0–106.0 kPa
Site Requirement: Equipment and vehicle must be placed on the same horizontal plane; horizontal error not more than 1%.
Power Supply: AC 220V ±10%, 50 ±1Hz; 1 × DC 9V battery; 6 × 1.5V AAA batteries for laser device
Power Consumption: Total ≤2W
Weight: Approx. 30 kg
